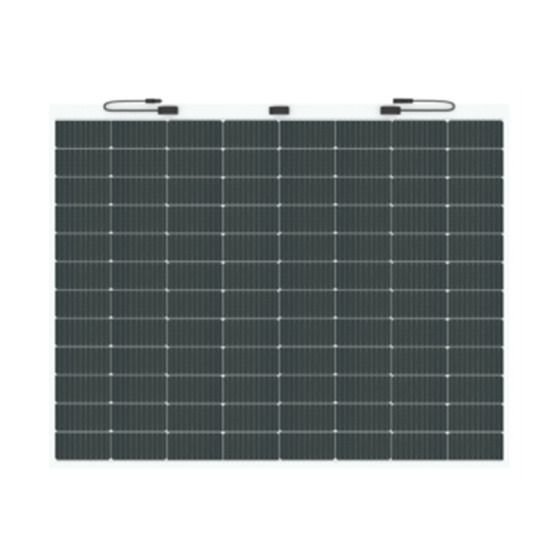

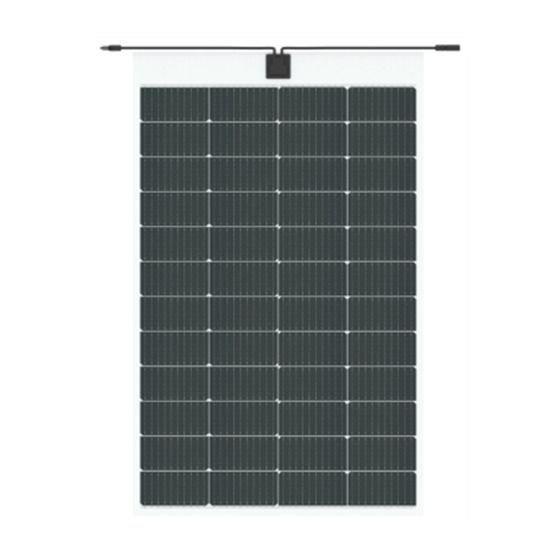

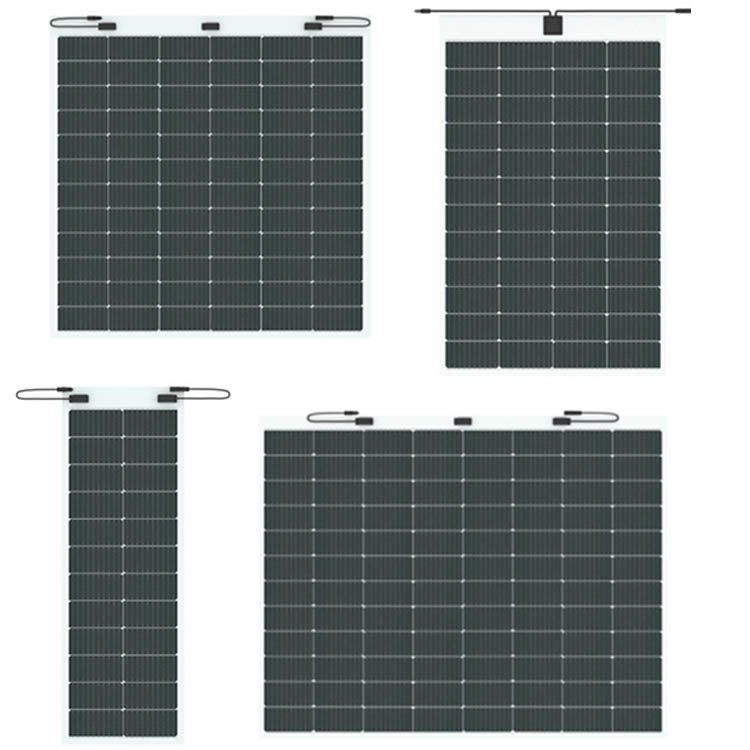

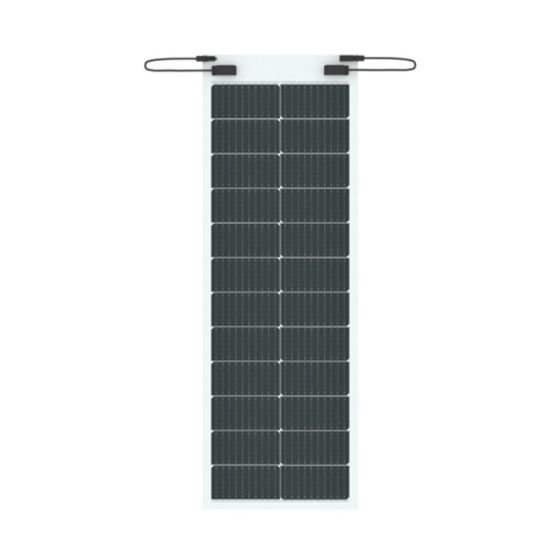

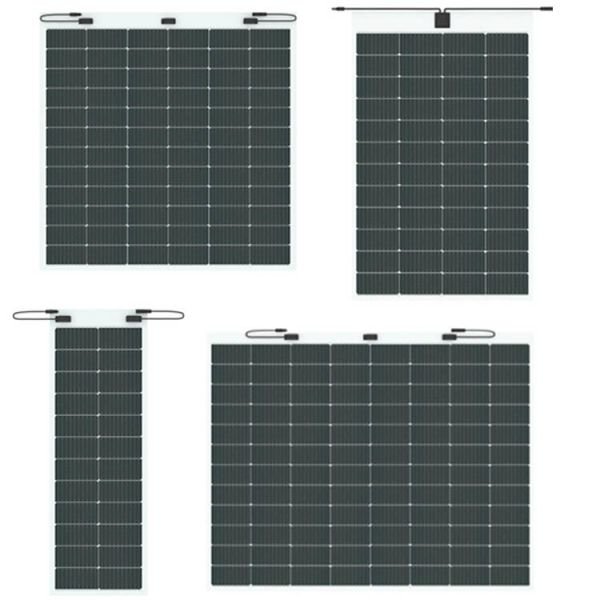

Customized Flexible Module

Compared with traditional glass modules, the weight of light photovoltaic modules in Zhongke Fueng has been reduced by more than 70%.

Can be widely used in a variety of load-bearing insufficient occasions
The unique packaging process of the anti-bending and cracking self-developed reinforced material forms a perfect integrated structure with the battery chip.
Make it "safe and sound" when bending "!
The unique packaging process of the anti-super impact self-developed reinforced material provides excellent support for the battery chip, making it "safe and sound" under the strong impact of hail "!

Inquire Now Next Product

Sheet of lightweight module Customized Flexible Module

Product Type	CS-LMCS510	CS-LMCS515	CS-LMCS520
Maximum Power [W]	510	520	520
Maximum Power Tolerance [W]	0/+5	0/+5	0/+5
Open Circuit Voltage [V]	49.76	49.83	49.9
Short Circuit Current [A]	12.74	12.78	12.86
Maximum Power Point Voltage [V]	42.29	42.35	42.41
Maximum Power Point Current [A]	12.31	12.34	12.37
Weight per pc. [kg]	7.83 (±0.5)	7.83 (±0.5)	7.83 (±0.5)
Thickness [mm]	1.8(±1)	1.8(±1)	1.8(±1)
Dimension LWH [mm]	225012001.8(±0.5)	225012001.8(±0.5)	225012001.8(±0.5)
Maximum System Voltage [V]	1,500	1,500	1,500
Maximum Fuse Rating [A]	25	25	25
Front plate	Fluorine film front plate	Fluorine film front plate	Fluorine film front plate
Back plate	Reinforced Composites	Reinforced Composites	Reinforced Composites
Juntion Box	IP68, MC4 connector	IP68, MC4 connector	IP68, MC4 connector
Maximum positive static load [Pa[]	2400	2400	2400
Operating temperrature [℃]	-40 to +85	-40 to +85	-40 to +85
NOCT	45℃	45℃	45℃
Peak power （Pmpp）temperature coefficient	0.37%/℃	0.37%/℃	0.37%/℃
Open Circuit Voltage [Voc] temperature coefficient	0.28%/℃	0.28%/℃	0.28%/℃
Short Circuit Current [Isc] temperature coefficent	0.05%/℃	0.05%/℃	0.05%/℃
